Fuel flow meter

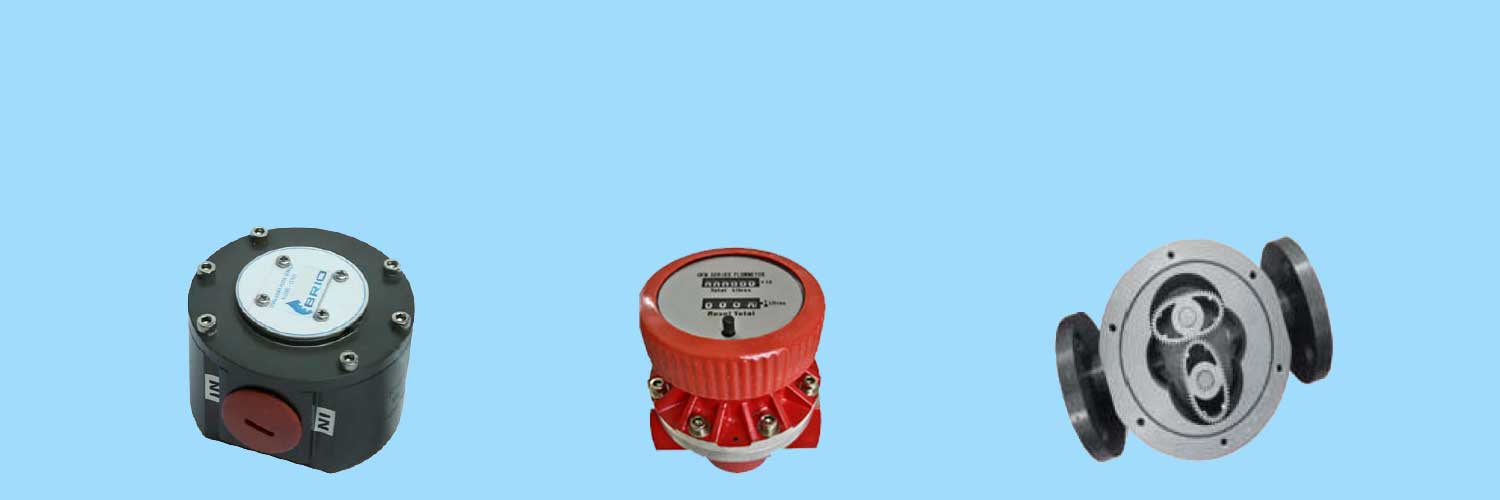

Positive Displacement Oval Gear Sensor contains a pair of oval gear rotors. PositiveDisplacement Oval Gear sensors where the liquid passage causes two oval gear rotors to rotate within a precious measuring chamber and with each of rotation a fixed volume of liquid is displaced passing tgrough the sensor. Magnets which are inserted in the rotors transfer pulse train output.
The pulse output is then interfaced to above monitoring / process control instrument.



TECHNICAL DETAILS:
ENCLOSURE ALUMINIUM ANODISED/ SS316 (Optional)
ROTOR (GEARS) ALUMINIUM ANODISED/ SS316 (Optional)
O‐ring NBR/VITON/SILICON
SHAFT Hard STAINLESS STEEL
Accuracy (standard installation position) ±1% RS
Maximum working pressure 10MPa (35~85%RH)
Fluid working temperature ‐40 to 80°C
Power Supply Voltage 3 – 24 VDC (generally given through our controller)
Output Signal NPN Open Collector
Major Fluid kerosene, Gasoline, Diesel, light oil, heavy oil etc
Fuel flow meter

FLOW RANGE:

Pipe Size Model No Flow Rate (MinMax) Litter/pulse
1/4" CI‐003‐A‐A‐S 0.05~50L/H 0.333 ml/p
1/4" CI‐004‐A‐A‐S 0.7 ~60L/H 0.416 ml/p
3/8” CI‐006‐A‐A‐S 5~150 L/H 0.661 ml/p
3/8” CI‐008‐A‐A‐S 20~300L/H 2.5 ml/p
1/2" CI‐012‐A‐A‐S 50~800L/H 2.5 ml/p
3/4" CI‐020‐A‐A‐S 50~800L/H 15.4 ml/p
1” CI‐025‐A‐A‐S 200~4,000L/H 25.6 ml/p
1.5” CI‐040‐A‐A‐S 500~10,000L/H 86ml/p
2” CI‐050‐A‐A‐S 600~20,000L/H 190ml/p
3” CI‐080‐A‐A‐S 1000~50,000L/H 540ml/p
4” CI‐100‐A‐A‐S 2000~1,00,000L/H 1000ml/p
5” CI‐150‐A‐A‐S 5000~1,50,000L/H 3200ml/p
