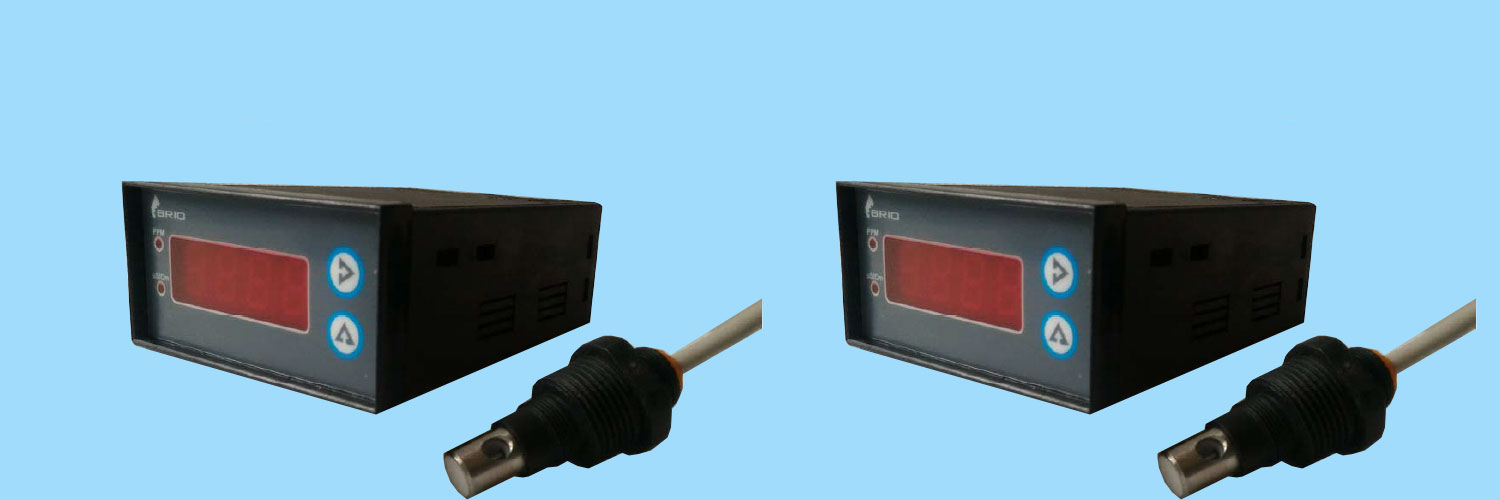

PH Electrode
| Wetted Parts | Body ‐ Glass Housing – Std PVC (Optional – Teflon/SS316) Cap – Std PVC (Optional – Teflon/SS316) |
| Process Connection | 3/4" bsp (NPT optional) |
| ATC (optional) | External Pt100 (Pt1000 optional) |
| Temperature Range | 0 – 600C (Optional upto 1300C – with Teflon/SS316) |
| Pressure Range | 0 – 6 bar Std |
| Sensor Cable | 3 meter Std |
| Cable Connector | BNC |
| Range | 00.00 – 14.00 |
The sensor shall have these important enhanced performance design characteristics:
a) Manufactured to exact tolerances using high quality, rugged materials.
b) Individually tested to determine its absolute highest possible measuring accuracy.
c) External Pt100 [Pt 1000 optional] RTD temperature element for exceptionally fast response to changes in Temperature with ± 0.10C accuracy.
Applications:
o Food Industry
o Pharmaceutical
o High purity water
o Reverse Osmosis Plants
o Waste treatment Plants, and other processes
o Heavy duty electrodes for boiler applications
